Prints flat on the belly with a little tree support. Use a normal first layer, not a squished one: the tiles stand on the plate, and a heavy first layer makes their first slide stiff. Push each tile firmly once to free it.
Price
Free
Files
braille-sea-turtle.zip (17 MB)
See this model in 3D
The interactive 3D preview is optional. I include the written description and details on this page, so you do not need the preview to understand the model. It only loads when you activate it.
The 3D preview is optional. Activate the button to load it. Once it appears, use the left and right arrow keys to rotate, the up and down arrow keys to tilt, and the plus and minus keys to zoom. A Top-down view button looks straight down at the model, laying flat pieces like boards, cards and maps out as if on a table. A Reset view button returns the camera to its starting position. A full text description and download are provided below and do not require this preview.
About this model
The marginal scutes of this turtle's shell became the beads of an abacus: ten captive tiles, two rows of five, so numbers are felt as fives and friends of ten. Nothing falls out, nothing gets lost, nothing can be swallowed. The download includes both turtles, the counting abacus and the flexi braille turtle, with STLs, Bambu support projects and the OpenSCAD sources.

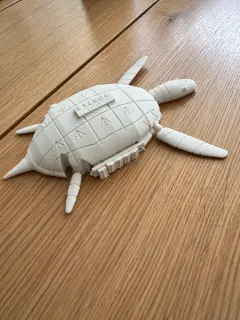

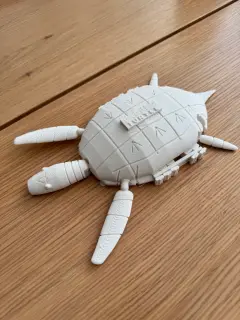

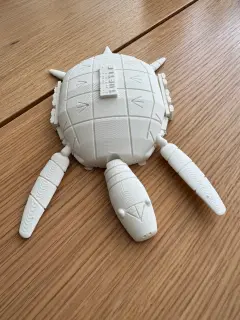

A sea turtle with carved shell scutes whose rim holds ten captive sliding tiles, five per side like a rekenrek. The spine carries a raised plate with TURTLE in braille and raised capitals; the head swings and the flippers sit in ball joints.
